U-PVC PRESSURE PIPES

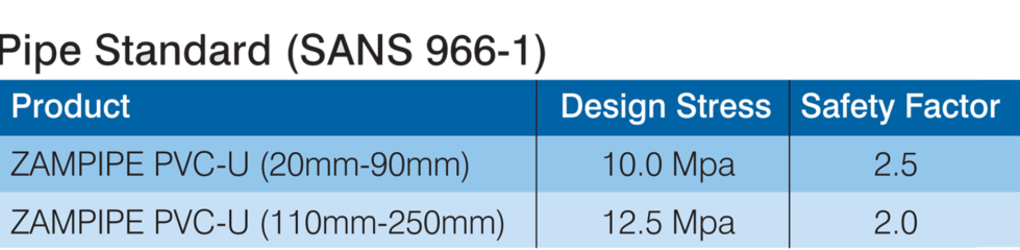

Pipe Standard (SANS 966-1)
ZAMPIPE unplasticised PVC (PVC-U) pressure pipe are manufactured to the SANS 966 Part 1 specification,incorporating the design stresses of 10and 12.5 MPa.The product is ideally suited to applications in both pumping and gravity
designs.
PVC Pipe Dimensions

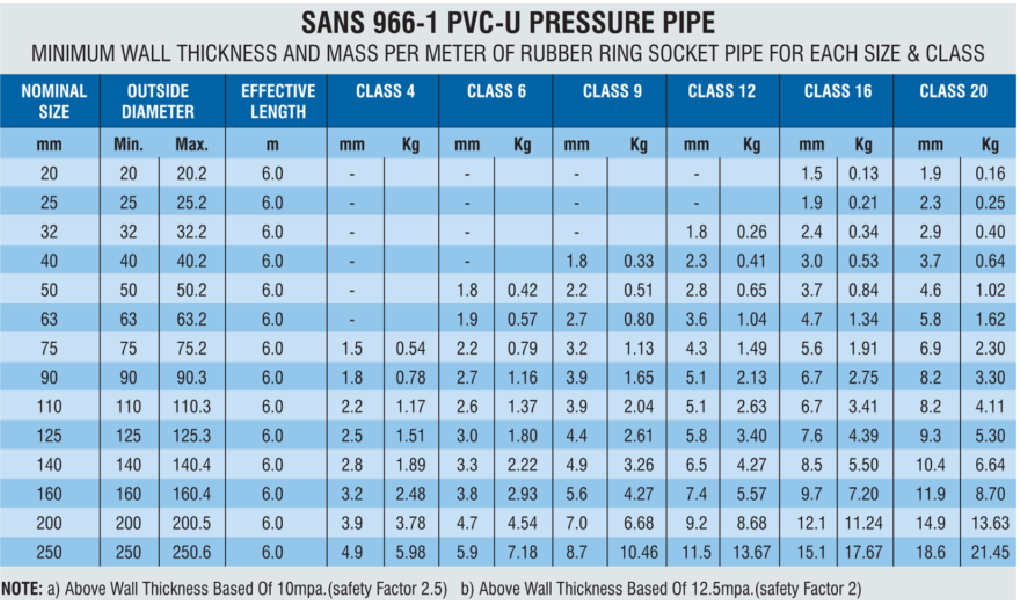

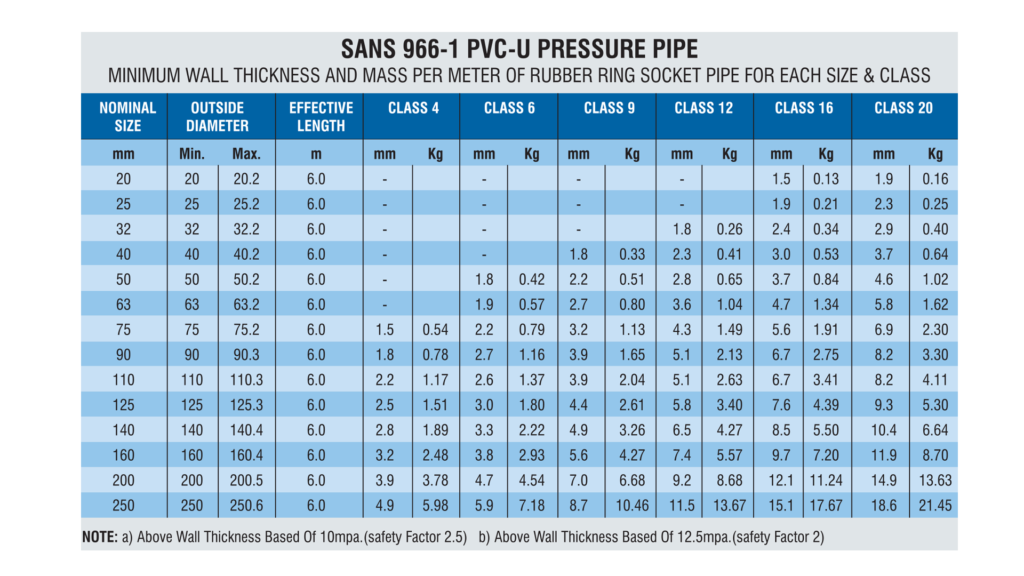

All pipes are made to provide an effective length of 6.0 meters from 20mm-250mm the outside diameters are the same for all pressure classes of the same size and there are 6 classes of pipes. Minimum wall thickness and mass per 6-meter length for each size and class. (Wall thickness = mm / Mass = kg).
